Subtractive MANUFACTURING

The more conventional process of making by removing material to for the net shape, this process is more traditional process.

Pocket NC

A small 5-Axis CNC Mill capable of high-precision machining

Hardware:

• Working Volume: 4.3 x 5.0 x 3.55 in
• 1/8 ER11 Collet and Nut
• XYZ Repeatability - 0.002in
• AB Repeatability - 0.125 deg

Software:

• Autodesk Fusion 360 Toolpath Generation
• Autodesk Fusion 360 G-Code Posting

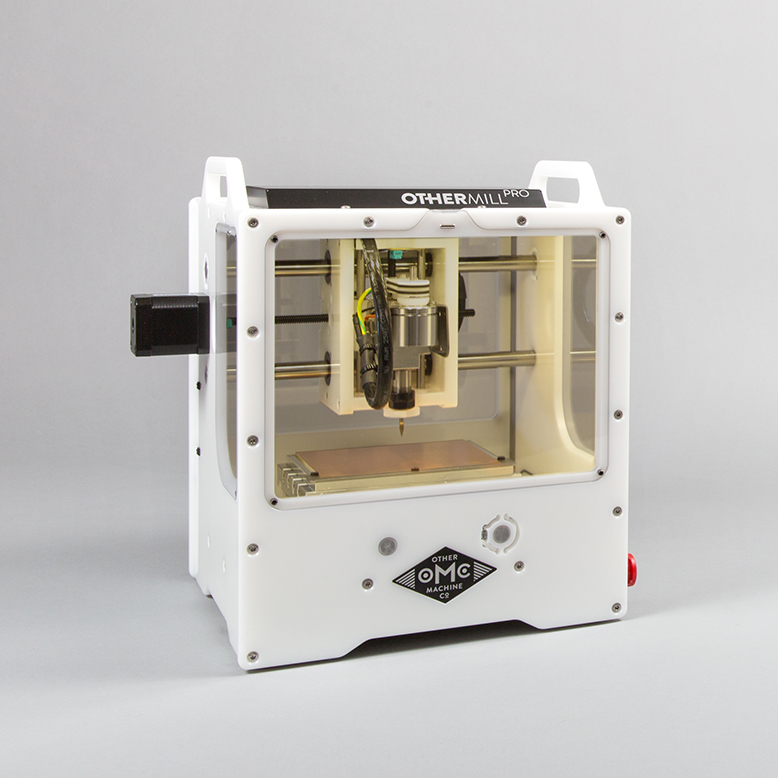

 OTHER MILL PRO

Hardware:

• Working Volume: 5.5 x 4.5 x 1.6 in
• Precision 0.001in (40um)
• Spindle 26,000 RPM, 1/8" Collet

Software:

• Otherplan
• Supports
  • Eagle BRD File
  • Gerber File
  • SVG
  • G-Code (Link 1) (Link 2)

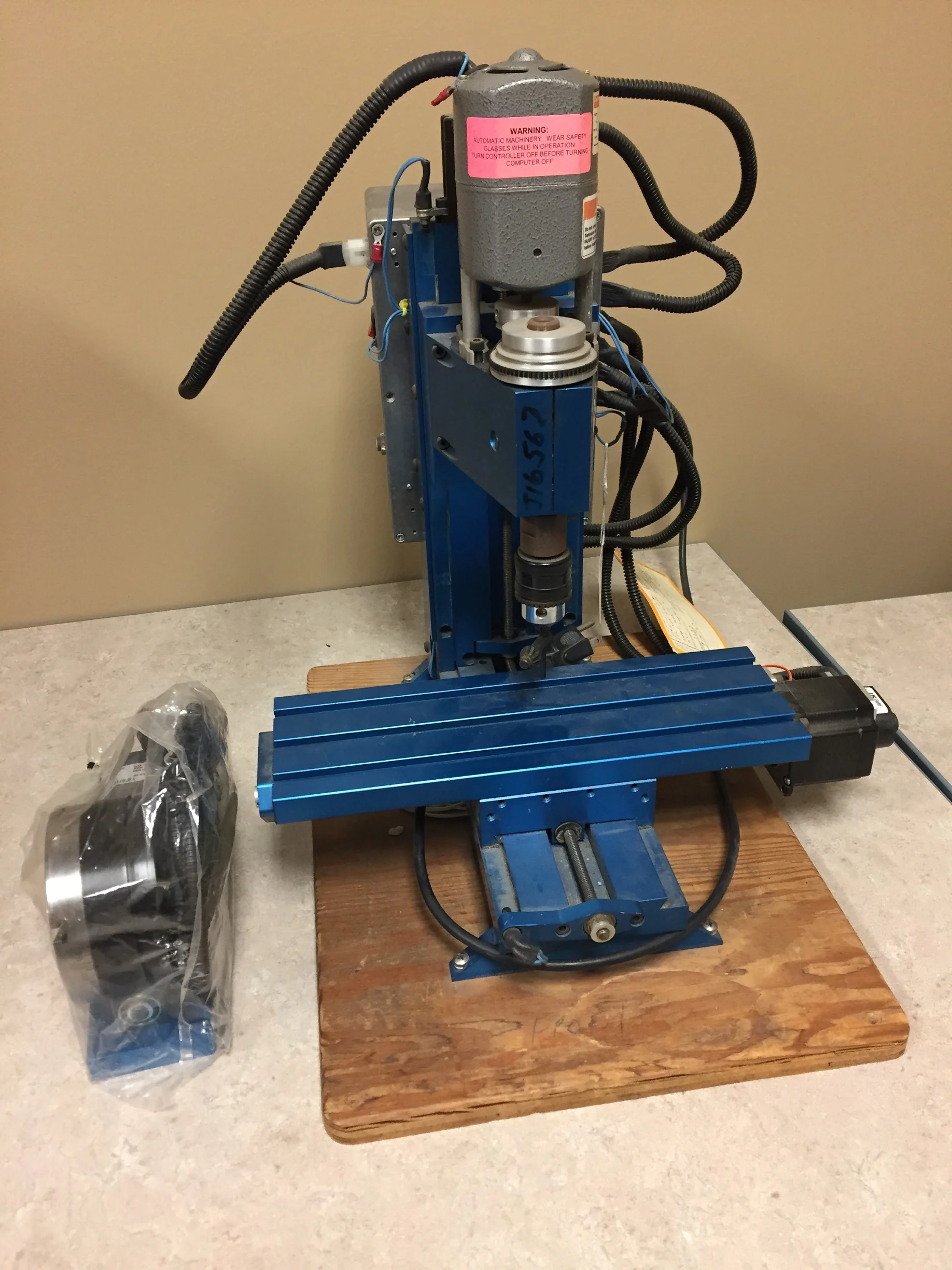

3-AXIS CNC MILL (4th Option)

A small 3-Axis CNC Mill with optional 4th Axis option. This milling machine was a hand-me-down from AFRL with no motor controller, software, or support. It's a good example of something that could be used in the future. We always encourage our users to help build or shape our space as they need. This CNC Mill would add capability to the AFRL Maker Hub.
